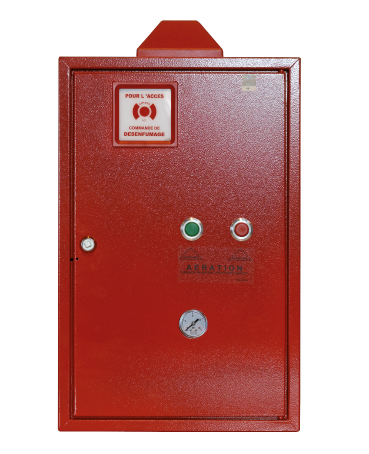

Pneumatic box opening 1 closing + ventilation XPJ360B

Dry roof - Waterproof roof

The XPJ360B SINGLE ZONE BIFONCTION CO₂ pneumatic smoke controllers (D.C.M.*, D.A.C.* ou D.C.M.R.*) are designed to issue an opening order by percussion of single-use A.P.S (CO₂ cartridges) to Natural Smoke and Heat Exhaust Ventilators (NSHEV). They allow the opening of smoke extraction devices with a push button control. The BIFONCTION model has a ventilation opening - closing command. The smoke extraction function always has priority over the ventilation function. The standard ranges are equipped with a deformable membrane and are accessible at level 0 (§4.1 of NF S 61-931). It is possible, on request, to make adaptations of the standard enclosures with, for example, vandal-proof doors for access to level 1 (§4.2 of NF S 61-931), or cabinets (D.C.M.R.*) with a number of strikers to be determined.

---

Assets

• Firing pin release facilitated by the pressure of a push button,
• Fixing bracket adaptable to the support,

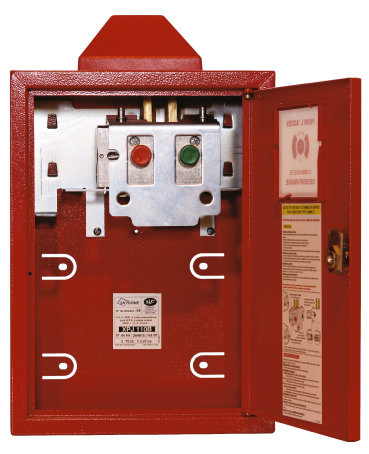

• Mono-Bloc box installed in a single action,
• Ventilation command Open - Close,
• Automatic reset purge selector,
• Filter regulator with pressure gauge,

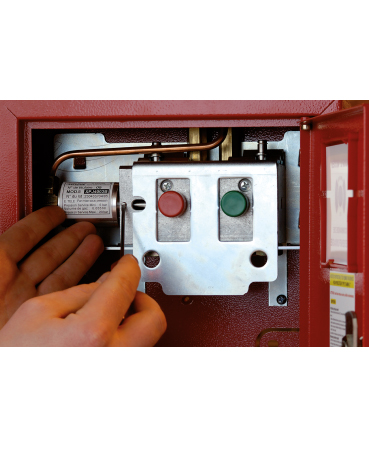

• Firing pin rearming device integrated in the mechanism,
• Increased capacity of CO2 cartridges in relation to the size of the box,
• Simple and quick installation of the remote control module (electric or pneumatic),
• Easy access to the connections on the outside of the box,
• Tube cover delivered with each box,
