skybaie Ouverture seule déclenchement pneumatique

Cubierta - Renovación - Dry roof

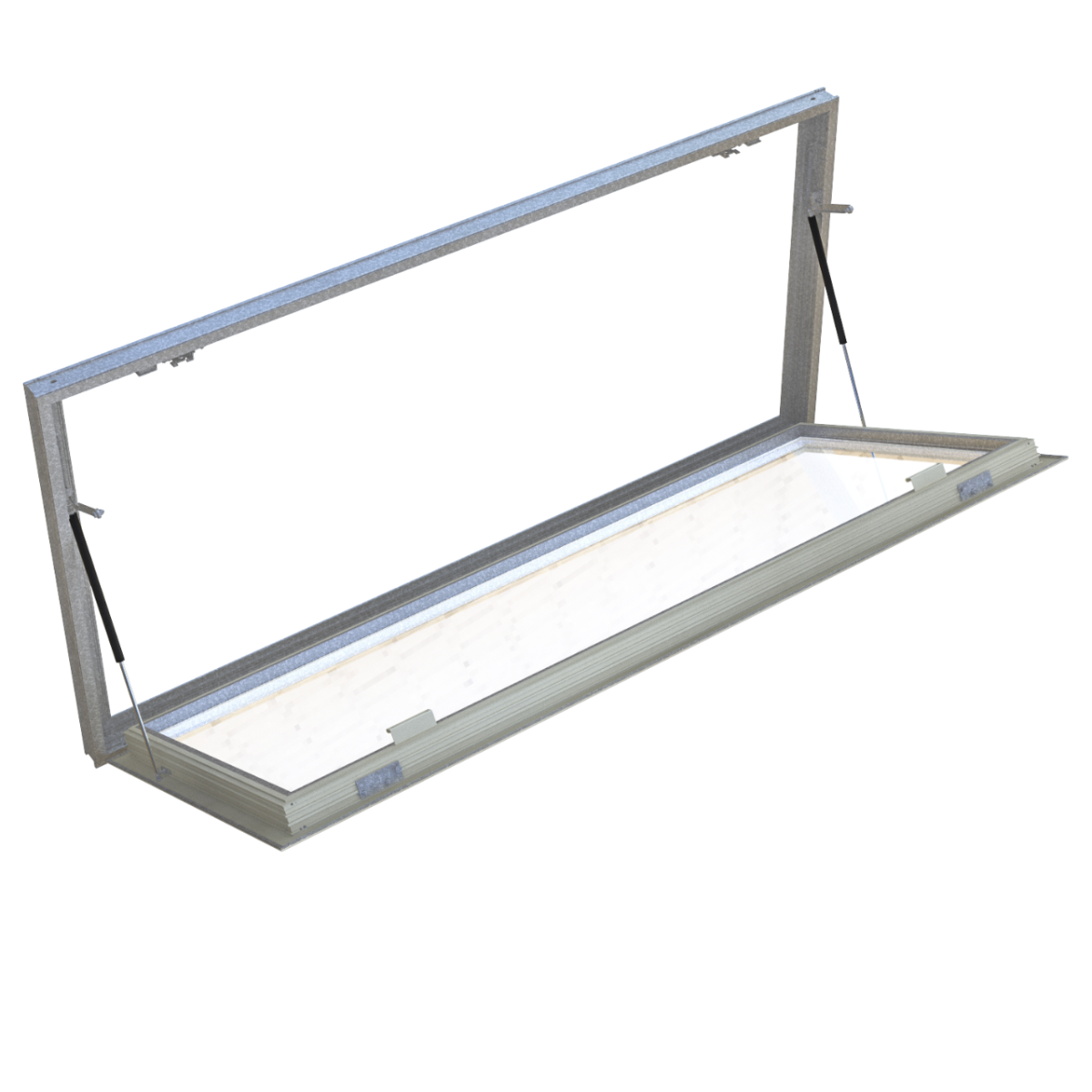

The SKYBAIE Pneumatic Single Opening is a smoke extraction façade frame with a thermal break. This DENFC provides natural smoke extraction and air supply functions for all types of building (ERP, ERT, industrial buildings). Different installations are possible: surface-mounted installation, tunnel installation, renovation installation, installation integrated into a curtain wall, between frames, with a transom and/or a spandrel. The SKYBAIE Ouverture Seule is CE 0333CPR219-086 and NF 11/12.01 certified.

---

VENTAJAS

Aesthetics :

• The mechanism, consisting of one or two pneumatically-operated lock units, is invisible when closed.
• Wide choice of colours.
• Qualicoat and Qualimarine certification available on request (depending on customer requirements).

Complete solution:
The Skybaie Ouverture Seule pneumatically-operated is equipped with an internal network that allows control on the right or left side at the top of the unit.
In the case of a device with two lock units, an integrated relay allows simultaneous triggering.

Simplified maintenance:
A manual release is fitted as standard to allow access to the mechanism without damaging the device.

Wide size range :
See attached table.

Numerous adaptable accessories:
Joint covers, mudflaps, flaps, connection and junction profiles, etc.; are available on request.

AEV rating: A*2 E*9A V*C2
